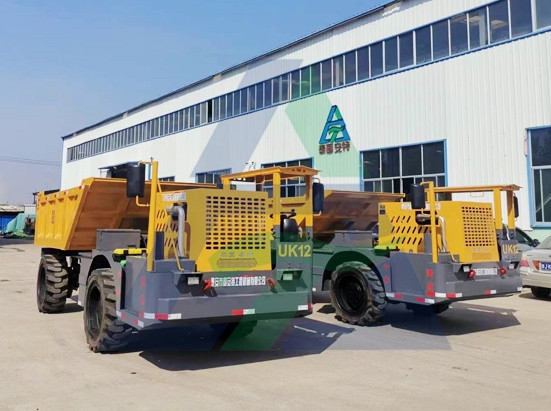

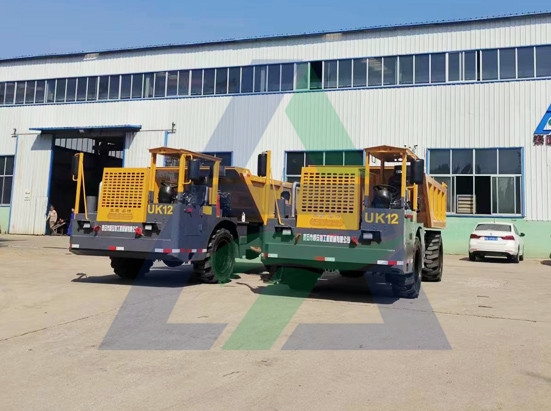

UK-12 Underground Mining Truck

1. Basic Machine Parameters

-

Bucket Capacity (m³)

6

Rated Payload (kg)

12000

Maximum Drawbar Pull (kN)

≤130

Overall Dimensions L×W×H (mm)

6350×2200×2160

Minimum Turning Radius (mm)

7950

Operating Weight (kg)

8290

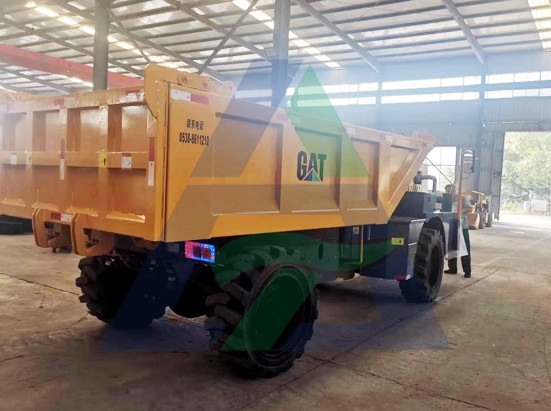

Cargo Box Dimensions L×W×H (mm)

4052×2150×782

Braking Distance (mm)

4900

2. Braking System

-

Wet-type Braking Method

Front and Rear Independent Hydraulic Wet-type Brakes

Service Brake

Front and Rear Independent Hydraulic Wet-type Brakes

Parking Brake

Fail-safe Spring Brake

3. Transmission System

-

Torque Converter

Fixed-shaft Power Shift Spur Gear Constant Mesh

Transmission

4-forward 2-reverse Fixed-shaft Hydraulic Shift

4. Travel Speed

-

Forward I

0-6 km/h

Forward II

0-12 km/h

Forward III

0-18 km/h

Forward IV

0-26 km/h

Reverse I

0-7 km/h

Reverse II

0-18 km/h

5. Engine

-

Model

Yuchai YCA07175-T480 (China Stage IV)

Type

In-line, Water-cooled, 4-stroke, Electronic Fuel Injection

Rated Power / Speed

131kW @ 2400rpm

Fuel

Diesel

6. Drive Axle

-

Drive Axle

Integrated Drive Axle

Main Drive Type

Spiral Bevel Gear Primary Reduction

Tire Model

385/56-24 Solid Tire
