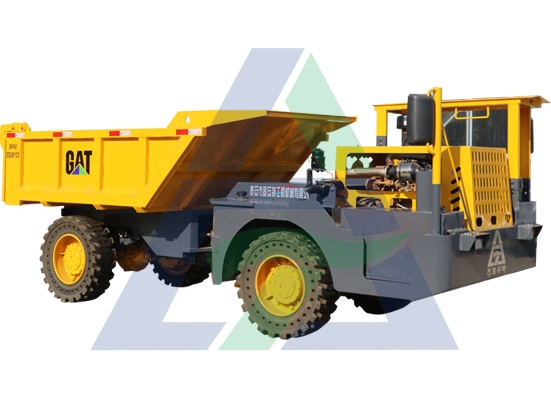

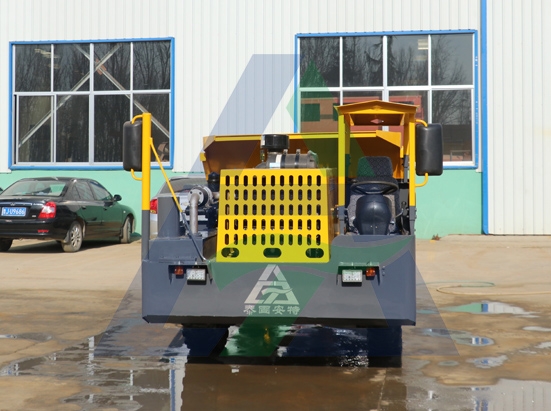

UK-8 Underground Mining Truck

1. Basic Machine Parameters

-

Bucket Capacity (m³)

3.7

Rated Payload (kg)

8000

Maximum Drawbar Pull (kN)

≤110

Overall Dimensions L×W×H (mm)

5480×1950×1960(Side Plate Height 1720mm)

Minimum Turning Radius (mm)

5955

Operating Weight (kg)

6200

Cargo Box Dimensions L×W×H (mm)

3400×1980×780

Braking Distance (mm)

3800

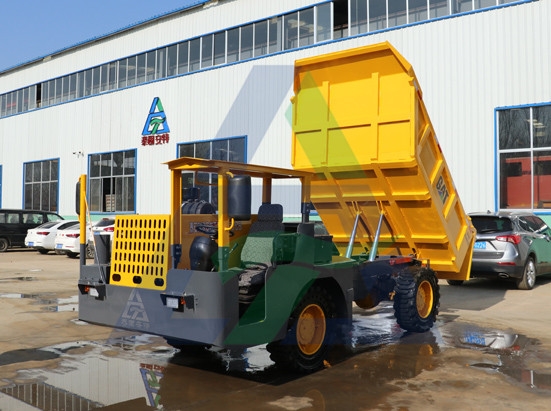

Maximum Dumping Height (mm)

3760

2. Braking System

-

Wet-type Braking Method

Fully Enclosed Multi-disc Wet-type Hydraulic Brakes

Service Brake

Fully Enclosed Multi-disc Wet-type Hydraulic Brakes

Parking Brake

Fail-safe Spring Brake

3. Transmission System

-

Torque Converter

Fixed-shaft Power Shift Spur Gear Constant Mesh

Transmission

4-forward 2-reverse Fixed-shaft Hydraulic Shift

4. Travel Speed

-

Forward I

0-6.5 km/h

Forward II

0-10 km/h

Forward III

0-15 km/h

Forward IV

0-23 km/h

Reverse I

0-8.5 km/h

Reverse II

0-18.5 km/h

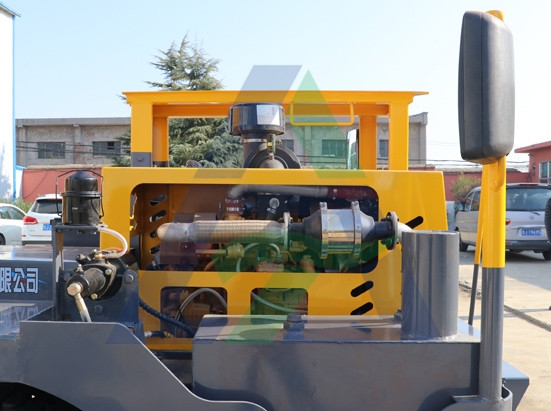

5. Engine

-

Model

Yuchai YCF39120-T482

Type

In-line, Water-cooled, 4-stroke, China Stage IV

Rated Power

88kW

Maximum Torque / Speed

880Nm @ 1800rpm

Fuel

Diesel

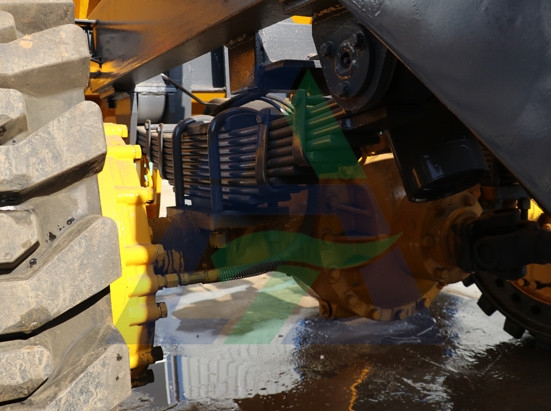

6. Drive Axle

-

Drive Axle

Integrated Drive Axle

Main Drive Type

Spiral Bevel Gear Primary Reduction

Wheel Reduction Drive

Planetary Gear System

Tire Model

880/295-20 Solid Tire
