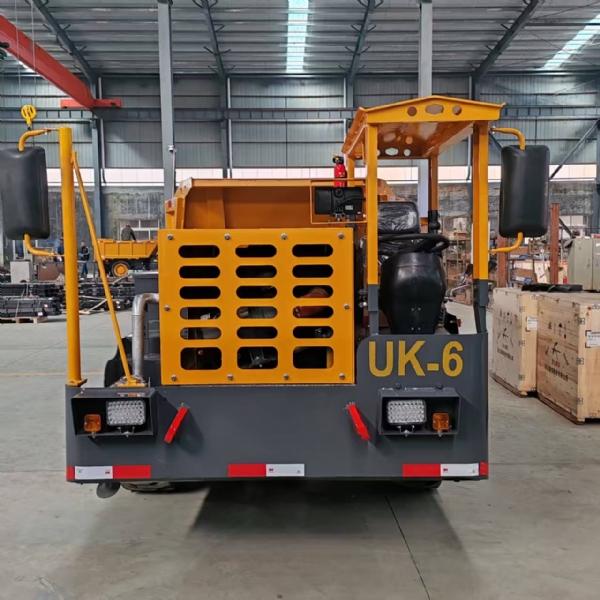

UK-6 Underground Mining Truck

1. Basic Machine Parameters

-

Bucket Capacity (m³)

3

Rated Payload (kg)

6000

Maximum Drawbar Pull (kN)

≥70

Overall Dimensions L×W×H (mm)

5120×1630×1800

Wheelbase (mm)

2900

Track Width (mm)

1330

Minimum Turning Radius (mm)

6000

Operating Weight (kg)

4700

Maximum Dumping Height (mm)

2900

2. Engine

-

Model

Yunnei YN29CCF4

Type

In-line, Water-cooled, 4-stroke, China Stage IV

Rated Power

74kW

Fuel

Diesel

Exhaust Treatment

EGR+DOC+DPF

3. Braking System

-

Service Brake

Fully Enclosed Multi-disc Wet-type Hydraulic Brakes

Parking Brake

Fully Enclosed Multi-disc Wet-type Spring Brakes

Braking Pressure (MPa)

2.5

Emergency Brake

Fully Enclosed Multi-disc Wet-type Spring Brakes

4. Transmission System

-

Torque Converter

YJ280

Transmission

Fixed-shaft Power Shift Spur Gear Constant Mesh

Gear Positions

2-forward 2-reverse Fixed-shaft Hydraulic Shift

5. Travel Speed

-

Low Range-I

5.0±0.5 km/h

Low Range-II

9.5±1.0 km/h

High Range-I

14.0±1.5 km/h

High Range-II

21.0±2.0 km/h

6. Tires

-

Tire Model

33X11.5-16
