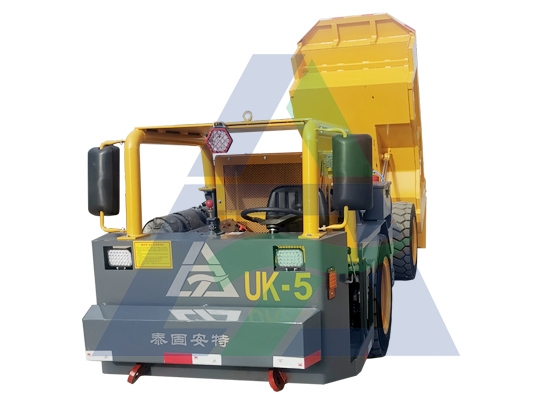

UK-5 Underground Mining Truck

Bucket Capacity (m³)

2.3

Rated Payload (kg)

5000

Maximum Drawbar Pull (kN)

≥70

Overall Dimensions L×W×H (mm)

5500×1470×1700

(Side Plate Height 1500mm)

-

Wheelbase (mm)

2570

Track Width (mm)

1130

Minimum Turning Radius (mm)

5000

Operating Weight (kg)

5000

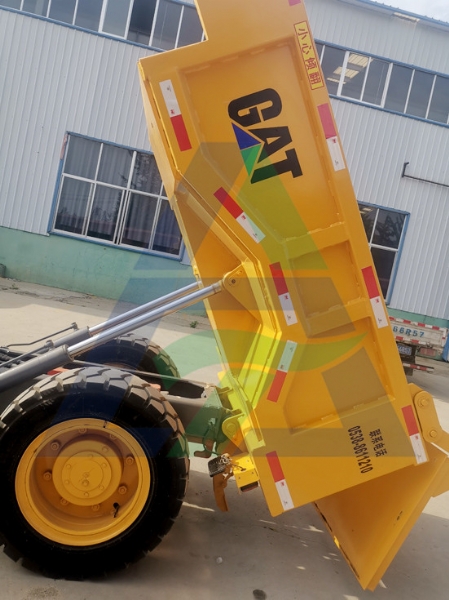

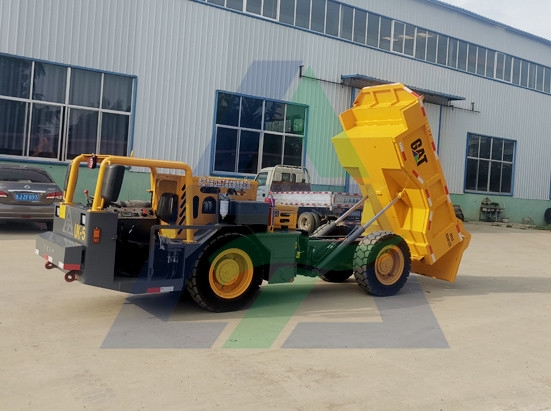

Maximum Dumping Height (mm)

3100

2. Braking System

-

Service Brake

Fully Enclosed Multi-disc Wet-type Hydraulic Brakes

Parking Brake

Fully Enclosed Multi-disc Wet-type Spring Brakes

Emergency Brake

Fully Enclosed Multi-disc Wet-type Spring Brakes

Braking Pressure (MPa)

≥2.5

3. Transmission System

-

Torque Converter

YJ280 Fixed-shaft Power Shift Spur Gear Constant Mesh

Transmission

2-forward 2-reverse Fixed-shaft Hydraulic Shift

4. Travel Speed

-

Low Range-I

9.5±0.5 km/h

Low Range-II

14.0±1.0 km/h

High Range-I

14.0±1.5 km/h

High Range-II

21.0±2.0 km/h

5. Engine

-

Model

Yuchai YCF3690-T480

Type

In-line, Water-cooled, 4-stroke, China Stage IV

Rated Power

66kW

Fuel

Diesel

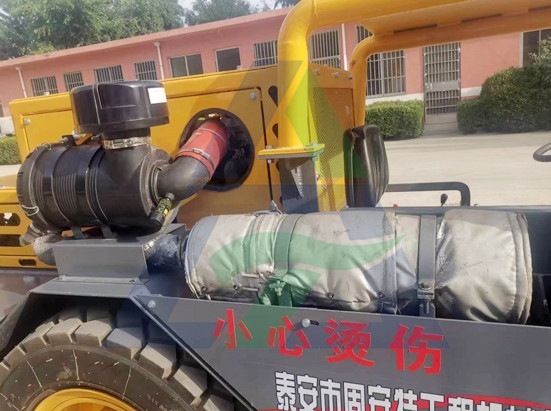

Exhaust Treatment

EGR+DOC+DPF

6. Tires

-

Tire Model

36X12.5-20
