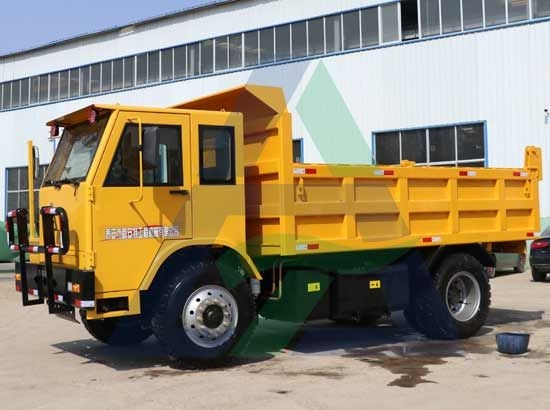

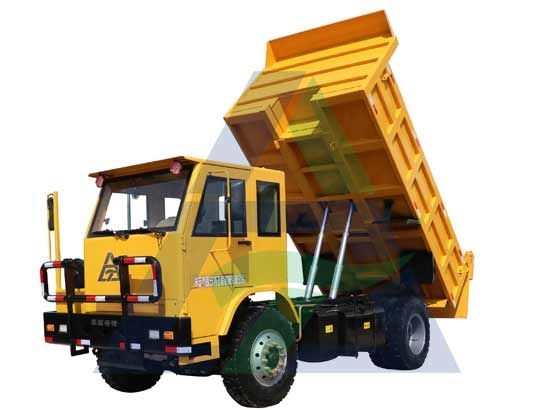

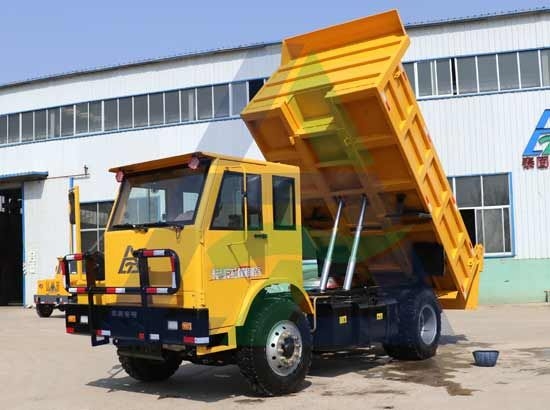

UQ-15 Underground Dump Truck

1. Basic Machine Parameters

-

Bucket Capacity (m³)

7.5

Operating Weight (kg)

87000

Rated Payload (kg)

15000

Overall Dimensions (Transport) L×W×H (mm)

5980×2300×2500

(Side Plate Height 2000mm)

-

Reserve Dimensions L×W×H (mm)

4000×2300×900

Maximum Dumping Height (mm)

4470

Minimum Ground Clearance (mm)

≥260

Minimum Turning Radius (Outer) (mm)

≤9000

Transmission Type

Mechanical Transmission

Drive Type

Rear Wheel Drive

Maximum Traction Force (kN)

95

Maximum Gradeability (°)

14°

Wheelbase

3400mm

Track Width

1850mm

2. Engine

-

Model

CA6DF3-19GBG3U

Type

In-line, Water-cooled, 4-stroke, Direct Injection

Rated Power

140kW @ 2300rpm

Fuel

Diesel

3. Travel Speed

-

Forward I

6 km/h

Forward II

8 km/h

Forward III

11 km/h

Forward IV

16 km/h

Reverse I

6 km/h

4. Tires

-

Tire Model

All-steel Radial Tire 9.00R20

5. Axles

-

Braking Method

Fully Enclosed Wet Brakes

Front Axle Model

6.5T

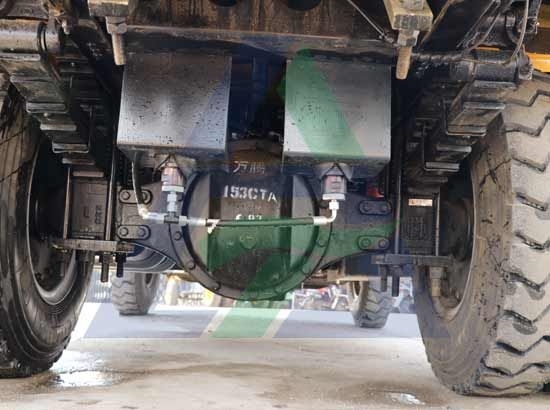

Rear Axle Model

EQ153 (Optional Steyr Two-stage Reduction)

6. Transmission

-

Model

Fast 8JS85F
