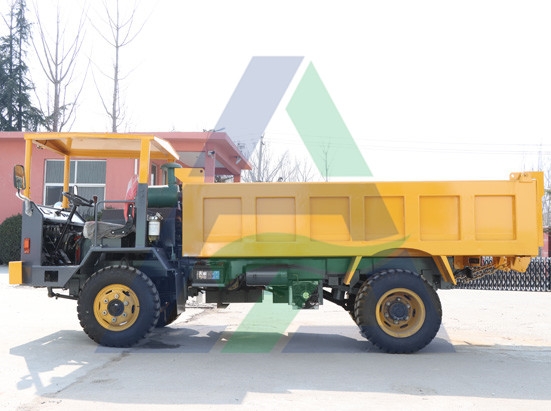

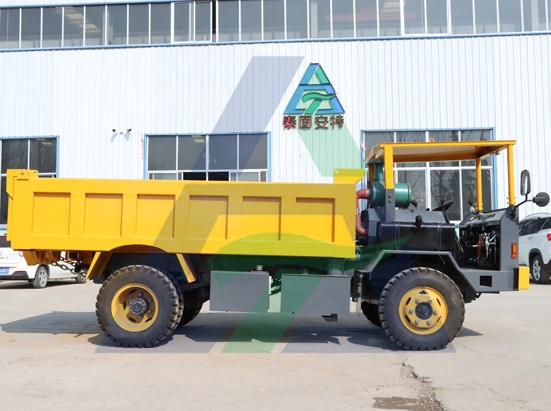

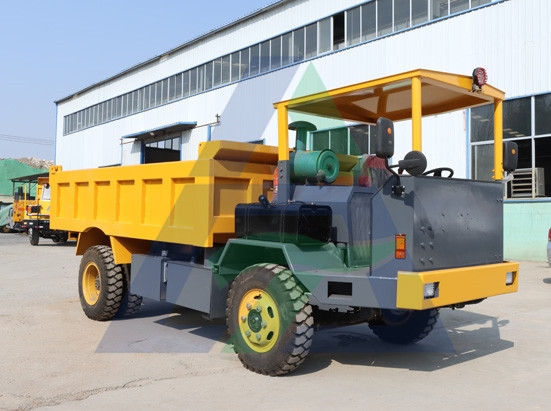

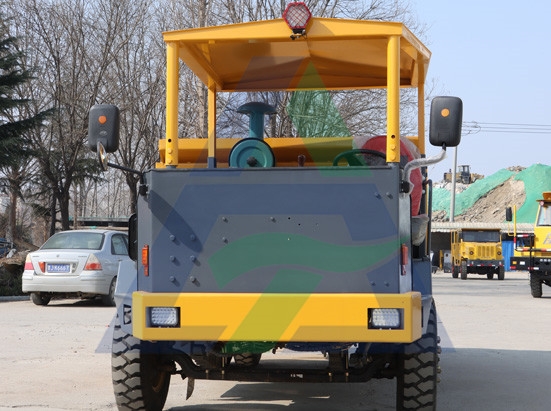

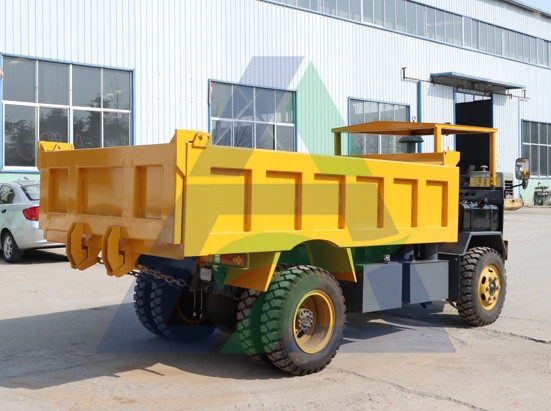

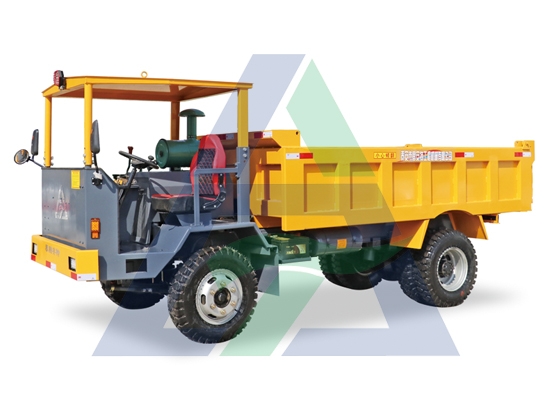

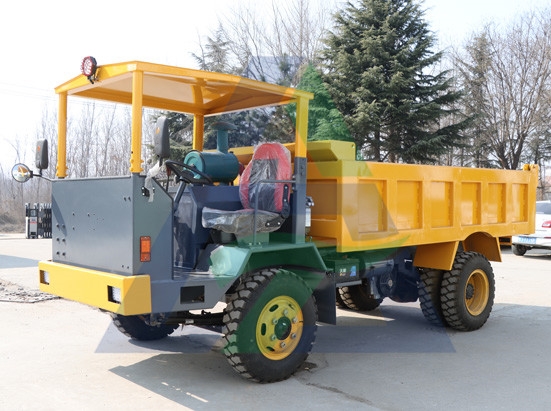

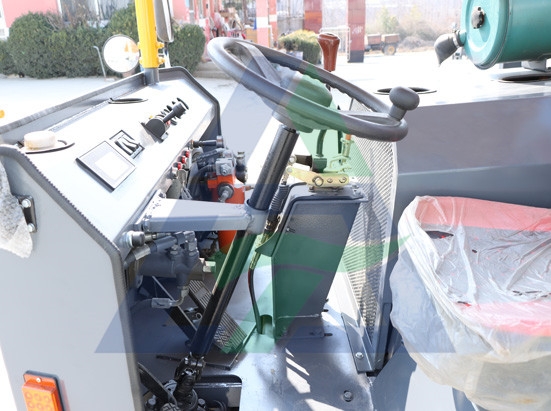

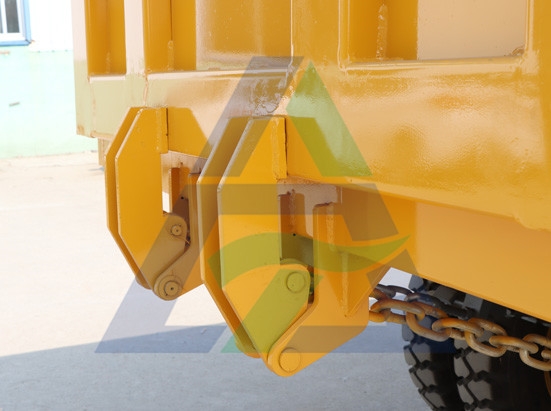

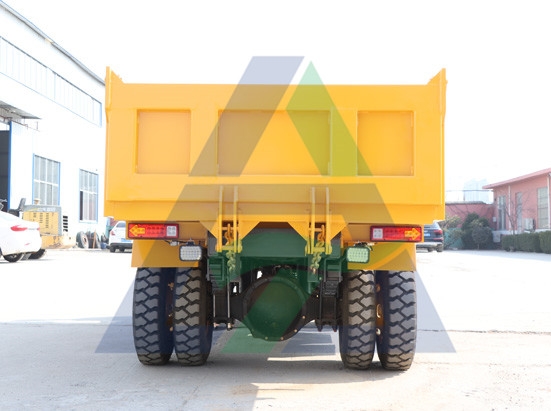

UQ-10 Underground Dump Truck

1. Basic Machine Parameters

-

Bucket Capacity (m³)

5

Rated Payload (kg)

10000

Operating Weight (kg)

4000

Maximum Traction Force (kN)

66

Overall Dimensions (Transport) L×W×H (mm)

5200×1800×2150

Cargo Box Dimensions L×W×H (mm)

3400×1800×700

Minimum Turning Radius (Outer) (mm)

7000

Minimum Ground Clearance (mm)

120

Drive Type

Rear Wheel Drive / Four Wheel Drive

Transmission Type

Mechanical Transmission

Maximum Gradeability (°)

≥14°

Maximum Dumping Height (mm)

3360

Loading Height (mm)

1650

2. Engine

-

Model

YCDV394ATL-130 (National IV)

Type

In-line, Water-cooled, 4-stroke

Rated Power

99kW

Fuel

Diesel

3. Braking System

-

Service Brake

Fully Enclosed Fail-safe Wet Brakes

Parking Brake

Fully Enclosed Fail-safe Wet Brakes

Tire Model

7.50-16

4. Transmission

-

Transmission Type

10-speed High/Low Range

5. Travel Speed

-

Low Range-Forward I

4.4 km/h

Low Range-Forward II

6.8 km/h

Low Range-Forward III

12 km/h

Low Range-Forward IV

18 km/h

Low Range-Forward V

23 km/h

High Range-Forward I

7.3 km/h

High Range-Forward II

12.3 km/h

High Range-Forward III

21.9 km/h

High Range-Forward IV

33.9 km/h

High Range-Forward V

52 km/h

Reverse

4.4 km/h
