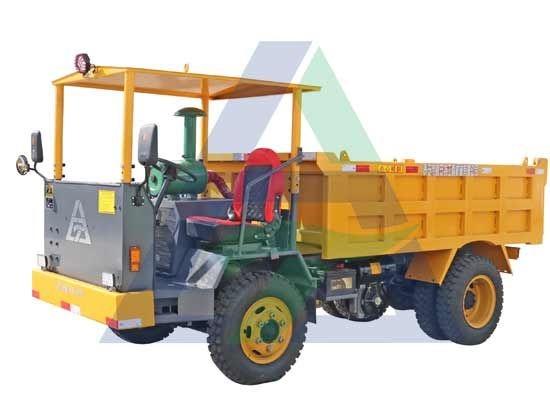

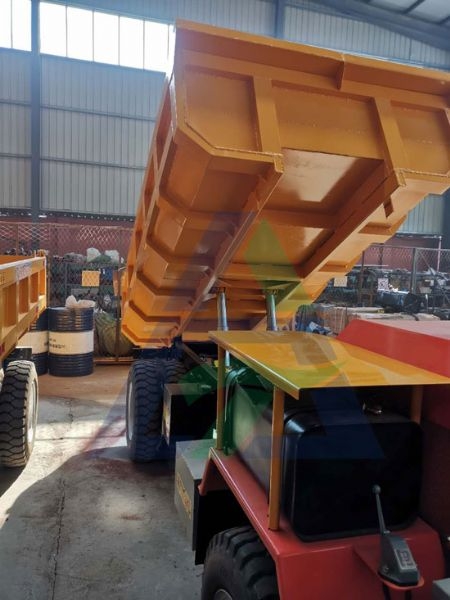

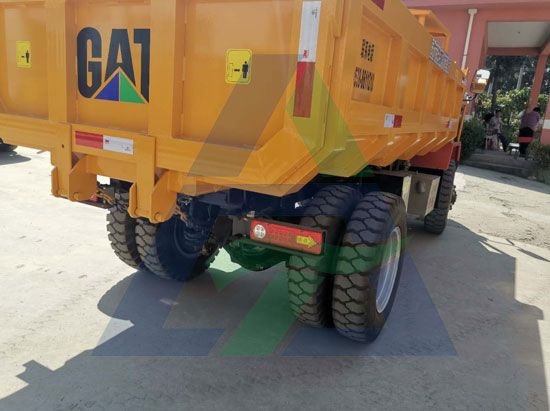

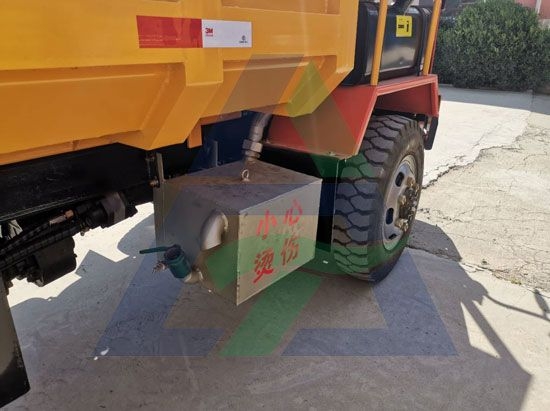

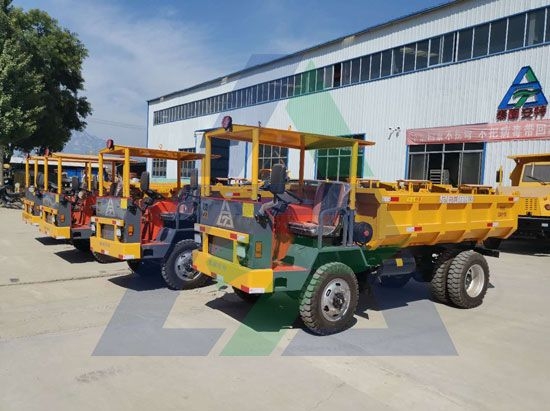

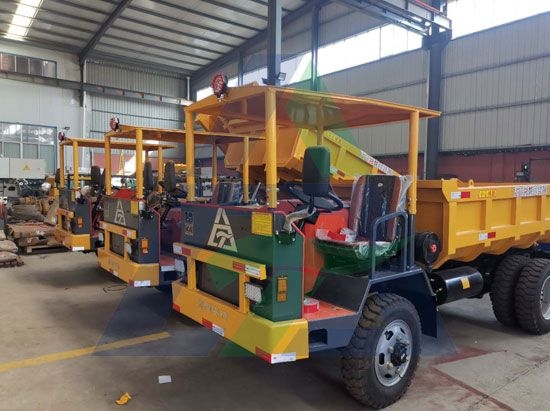

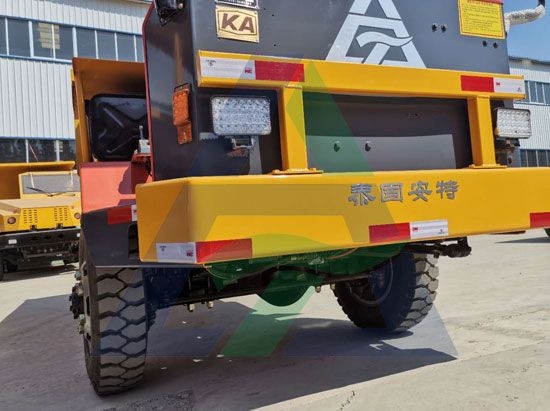

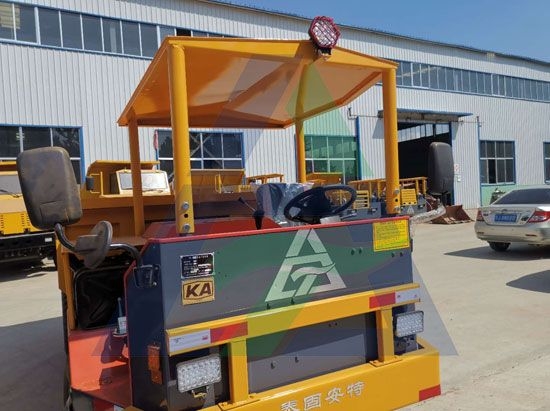

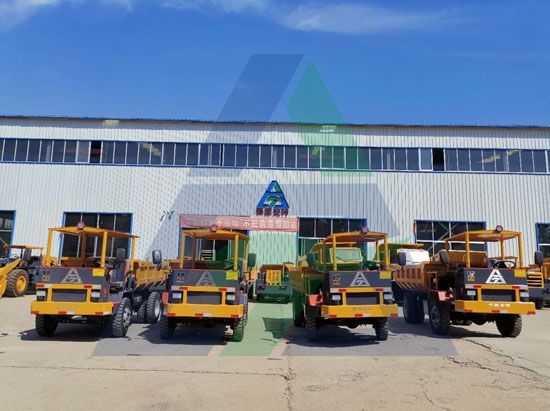

UQ-5 Underground Dump Truck

1. Basic Machine Parameters

-

Bucket Capacity (m³)

2.5

Rated Payload (kg)

5000

Operating Weight (kg)

3200

Maximum Drawbar Pull (kN)

40

Overall Dimensions (Transport) L×W×H (With Canopy) (mm)

4500×1620×1980

(Without Canopy Height 1500mm)

-

Cargo Box Dimensions L×W×H (mm)

2800×1600×700

Minimum Turning Radius (Outer) (mm)

7000

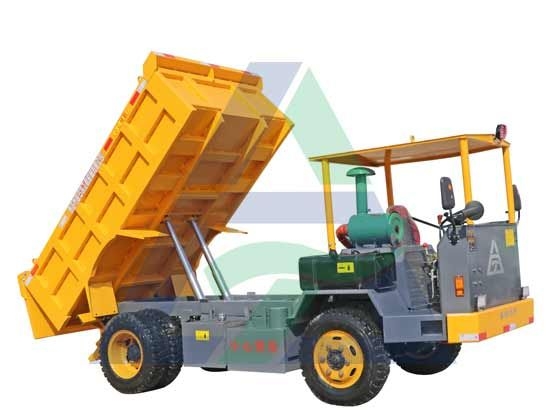

Maximum Dumping Height (mm)

3300

Minimum Ground Clearance (mm)

210

Side Plate Height (mm)

1530

Drive Type

Rear Wheel Drive / Four Wheel Drive

Transmission Type

Mechanical Transmission

Maximum Gradeability (°)

≥14°

2. Engine

-

Model

Yunnei YN27UAF4 (China Stage IV)

Type

In-line, Water-cooled, 4-stroke, Electronic Fuel Injection

Rated Power

36.8kW

Fuel

Diesel

3. Braking System

-

Service Brake

Fully Enclosed Fail-safe Wet-type Brakes

Tire Model

7.00-16

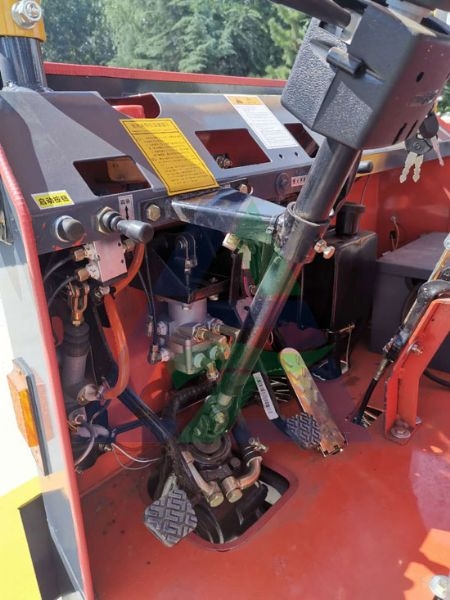

4. Transmission

-

Transmission Model

10-speed High/Low Range (Wanliyang)

5. Travel Speed

-

Low Range-Forward I

2.9 km/h

Low Range-Forward II

4.9 km/h

Low Range-Forward III

8.8 km/h

Low Range-Forward IV

13.6 km/h

Low Range-Forward V

20.8 km/h

High Range-Forward I

7.3 km/h

High Range-Forward II

12.3 km/h

High Range-Forward III

21.9 km/h

High Range-Forward IV

33.9 km/h

High Range-Forward V

52 km/h

Reverse

6.8 km/h
