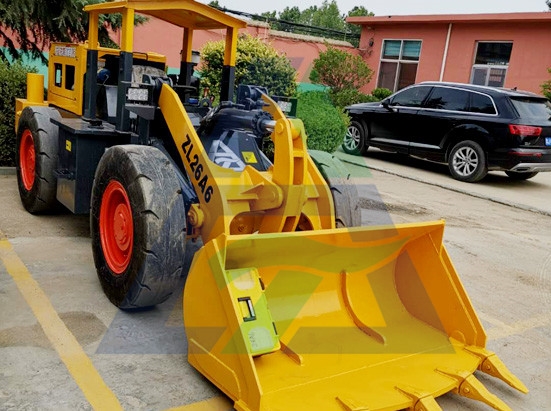

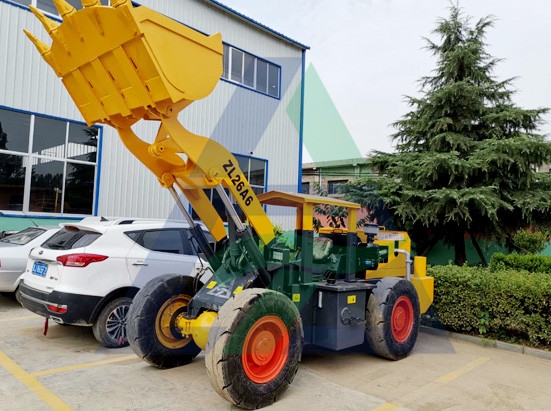

ZL926 Mining Loader

1. Basic Machine Parameters

-

Bucket Capacity (m³)

0.75

Rated Payload (kg)

2000

Maximum Breakout Force (kN)

≥60

Maximum Drawbar Pull (kN)

≥45

Overall Dimensions L×W×H (mm)

5260×1890(1700)×1900

Maximum Dumping Height (mm)

1800

Corresponding Dumping Reach (mm)

1000

Lift Time (s)

5

Total Cycle Time (s)

9

Minimum Turning Radius (Outer) (mm)

≤5900

Operating Weight (kg)

5600

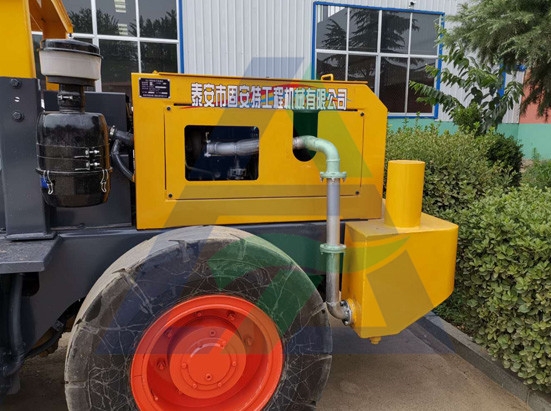

2. Engine

-

Model

Yuchai YCD4J22G 85kW / Dongfanghong LR4B3-24 60kW

Type

Vertical, In-line, Water-cooled, 4-stroke, Turbocharged

Rated Power / Speed

85kW @ 2400rpm

Maximum Torque / Speed

400Nm @ 1800rpm

Fuel

Diesel

3. Braking System

-

Service Brake

Front/Rear Independent Air-over-Hydraulic Caliper Disc 4-wheel Brake

Parking Brake

Cable-operated Caliper Disc Brake

Brake Air Pressure (MPa)

≤0.7

4. Transmission System

-

Torque Converter Model

YJ280

Type

Single-stage, Single-phase, 3-element

Torque Ratio (K0)

3.0

Transmission

Fixed-shaft Power Shift Spur Gear Constant Mesh

Gear Positions

2-forward 2-reverse Fixed-shaft Hydraulic Shift

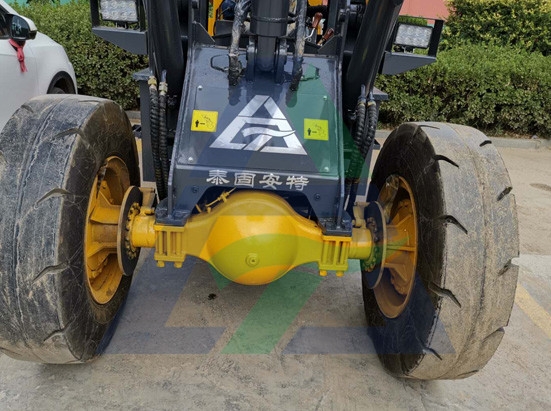

Drive Axle

-

Main Drive Type

Spiral Bevel Gear Primary Reduction

Wheel Reduction Type

Planetary Reduction Drive

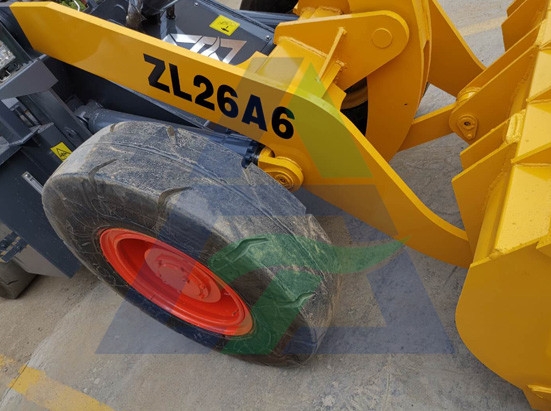

Tire Model

15/70-18 (Industrial) or 1000-20 (Mining)

5. Travel Speed

-

Forward I

8.0±0.5 km/h

Forward II

25±0.5 km/h

Reverse I

8.0±0.5 km/h

Reverse II

21±0.5 km/h
